rtos

RTOS (Real Time Operation System)

CPU Scheduling Taxonomy

Thread Design Pattern

Task vs Process

Task

A thread with normal thread state including stack, registers, PC, but also including signal handlers, task variables, task ID and name, priority, entry point, and a number of state and inter-task communication data contained in a TCB(Task Control Block) for VxWorks RTOS or Linux kernal descriptor.

Process

A process contains 1 or more threads in a protected address space, A process is a thread of execution with stack, register state, and PC state along with significant additional software state such as copies of all I/O descriptors (much more than an RTOS task + TCB) including a protected memory data segment (protected from writes by other processes)

Threads

Linux User space vs Kernel space

Linux has 2 address spaces - user and kernel

Kernel space directly interfaces to hardware and manages all resources

User space protects the system from errors and provides security & stability

can we have both? - with care

RTOS/NPTL provides common scheduling frames for:

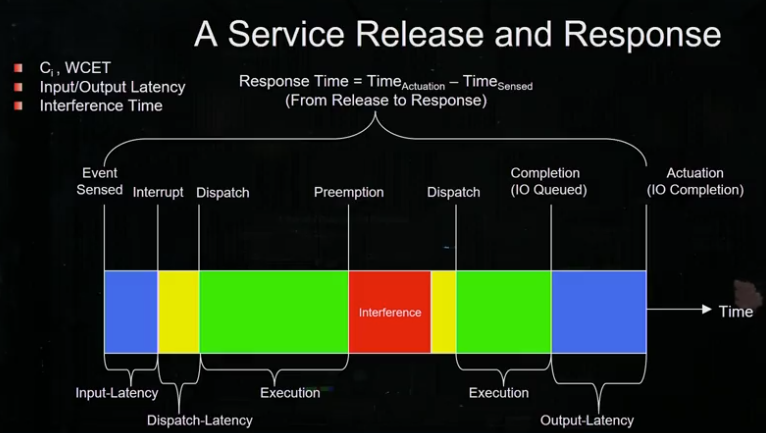

Rate Monotonic theory - optimal priority policy

Example

#define _GNU_SOURCE
#include <pthread.h>
#include <stdio.h>
#include <stdlib.h>
#include <errno.h>
#include <sys/time.h>
#include <sys/types.h>
#include <sched.h>

#define NUM_THREADS 64
#define NUM_CPUS 8

typedef struct
{
    int threadIdx;
} threadParams_t;
pthread_t threads[NUM_THREADS];
pthread_t mainthread;
pthread_t startthread;
threadParams_t threadParams[NUM_THREADS];

pthread_attr_t fifo_sched_attr;
pthread_attr_t orig_sched_attr;
struct sched_param fifo_param;

#define SCHED_POLICY SCHED_FIFO
#define MAX_ITERATIONS (1000000)

void print_scheduler(void)
{
    int schedType = sched_getscheduler(getpid());

    switch(schedType)
    {
        case SCHED_FIFO:
            printf("Pthread policy is SCHED_FIFO\n");
            break;
        case SCHED_OTHER:
            printf("Pthread policy is SCHED_OTHER\n");
            break;
        case SCHED_RR:
            printf("Pthread policy is SCHED_RR\n");
            break;
        default:
            printf("Pthread policy is UNKNOWN\n");
    }
}


void set_scheduler(void)
{
    int max_prio, scope, rc, cpuidx;
    cpu_set_t cpuset;

    printf("INITIAL "); print_scheduler();

    pthread_attr_init(&fifo_sched_attr);
    pthread_attr_setinheritsched(&fifo_sched_attr, PTHREAD_EXPLICIT_SCHED);
    pthread_attr_setschedpolicy(&fifo_sched_attr, SCHED_POLICY);
    CPU_ZERO(&cpuset);
    cpuidx=(3);
    CPU_SET(cpuidx, &cpuset);
    pthread_attr_setaffinity_np(&fifo_sched_attr, sizeof(cpu_set_t), &cpuset);

    max_prio=sched_get_priority_max(SCHED_POLICY);
    fifo_param.sched_priority=max_prio;

    if((rc=sched_setscheduler(getpid(), SCHED_POLICY, &fifo_param)) < 0)
        perror("sched_setscheduler");

    pthread_attr_setschedparam(&fifo_sched_attr, &fifo_param);

    printf("ADJUSTED "); print_scheduler();
}

void *counterThread(void *threadp)
{
    int sum=0, i, rc, iterations;
    threadParams_t *threadParams = (threadParams_t *)threadp;
    pthread_t mythread;
    double start=0.0, stop=0.0;
    struct timeval startTime, stopTime;

    gettimeofday(&startTime, 0);
    start = ((startTime.tv_sec * 1000000.0) + startTime.tv_usec)/1000000.0;


    for(iterations=0; iterations < MAX_ITERATIONS; iterations++)
    {
        sum=0;
        for(i=1; i < (threadParams->threadIdx)+1; i++)
            sum=sum+i;
    }


    gettimeofday(&stopTime, 0);
    stop = ((stopTime.tv_sec * 1000000.0) + stopTime.tv_usec)/1000000.0;

    printf("\nThread idx=%d, sum[0...%d]=%d, running on CPU=%d, start=%lf, stop=%lf",
           threadParams->threadIdx,
           threadParams->threadIdx, sum, sched_getcpu(),
           start, stop);
}

void *starterThread(void *threadp)
{
   int i, rc;

   printf("starter thread running on CPU=%d\n", sched_getcpu());

   for(i=0; i < NUM_THREADS; i++)
   {
       threadParams[i].threadIdx=i;

       pthread_create(&threads[i],   // pointer to thread descriptor
                      &fifo_sched_attr,     // use FIFO RT max priority attributes
                      counterThread, // thread function entry point
                      (void *)&(threadParams[i]) // parameters to pass in
                     );

   }

   for(i=0;i<NUM_THREADS;i++)
       pthread_join(threads[i], NULL);

}

int main (int argc, char *argv[])
{
   int rc;
   int i, j;
   cpu_set_t cpuset;

   set_scheduler();

   CPU_ZERO(&cpuset);

   // get affinity set for main thread
   mainthread = pthread_self();

   // Check the affinity mask assigned to the thread
   rc = pthread_getaffinity_np(mainthread, sizeof(cpu_set_t), &cpuset);
   if (rc != 0)
       perror("pthread_getaffinity_np");
   else
   {
       printf("main thread running on CPU=%d, CPUs =", sched_getcpu());

       for (j = 0; j < CPU_SETSIZE; j++)
           if (CPU_ISSET(j, &cpuset))
               printf(" %d", j);

       printf("\n");
   }

   pthread_create(&startthread,     // pointer to thread descriptor
                  &fifo_sched_attr, // use FIFO RT max priority attributes
                  starterThread,    // thread function entry point
                  (void *)0         // parameters to pass in
                 );

   pthread_join(startthread, NULL);

   printf("\nTEST COMPLETE\n");
}
